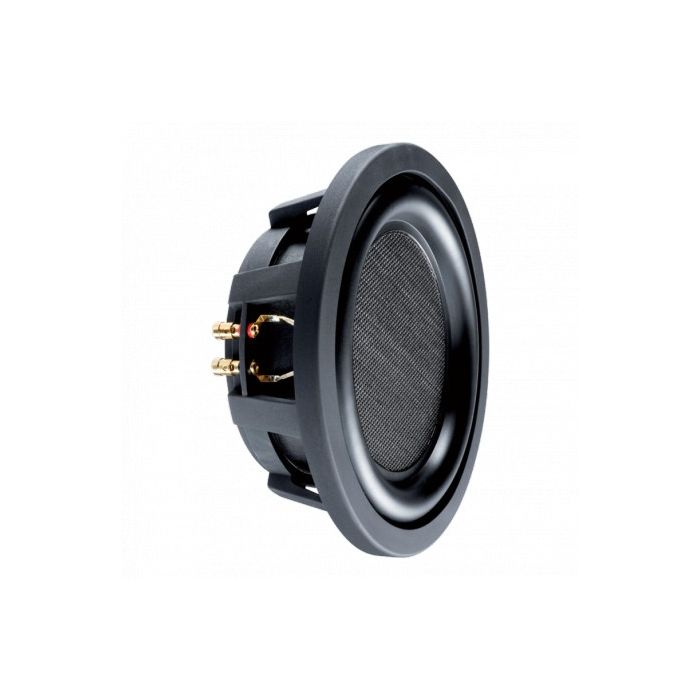

Helix E 10W DVC2
Special Price
143,00 €
113,94 €
Normihinta
159,00 €
Varastossa
SKU
E 10W DVC2
Helix E 10W DVC2
Helix E 10W DVC2 Uudistuneet Esprit-sarjan litteät subwooferit. Mm. uusi kartio ja puhekelat 2x2ohm. Erittäin litteä rakenne, mutta kuitenkin sama tinkimätön äänelaatu kuin kaikissa Helix tuotteissa.
Power handling RMS / Max
| 300 / 450 Watts | |
| Impedance | 2 x 2 Ohms |
| Voice coil diameter | 50.8 mm |
| Voice coil winding height | 16 mm |
| Max. linear excursion | +/- 4 mm |
| Cone area | 330 cm² |
| Moving mass | 93 g |
| DC resistance | 2 x 1.6 Ohms |
| Resonance frequency | 50 Hz |
| Mechanical Q factor | 6.68 |
| Electrical Q factor | 0.67 |
| Total Q factor | 0.61 |
| Equivalent air volume | 16.5 L |
| Voice coil inductance | 1.66 mH |
| Force factor | 12.0 Tm |
| Efficiency 1 W / 1 m | 87 dB |
| Outer diameter | 272 mm / 10.71“ |
| Cutout diameter | 234 mm / 9.21“ |
| Mounting depth | 80 mm / 3.15“ |
| Recommended enclosure | |
| Sealed box | |
| Sealed net volume | 15 L |
| Ported box | |
| Vented net volume | 25 L |
| Port diameter | 7 cm |
| Port area: | 38 cm² |
| Port length | 23 cm |
| Port tuning frequency | 40 Hz |
| Valmistaja | Helix |
|---|---|
| Malli | E 10W DVC2 |
| Kaiuttimen koko | 10'' |
| Tehonkesto | 300W/RMS |
| Asennussyvyys (mm) | 80 |
| Asennusaukko (mm) | 234 |
| Tilaustuote | Ei |
